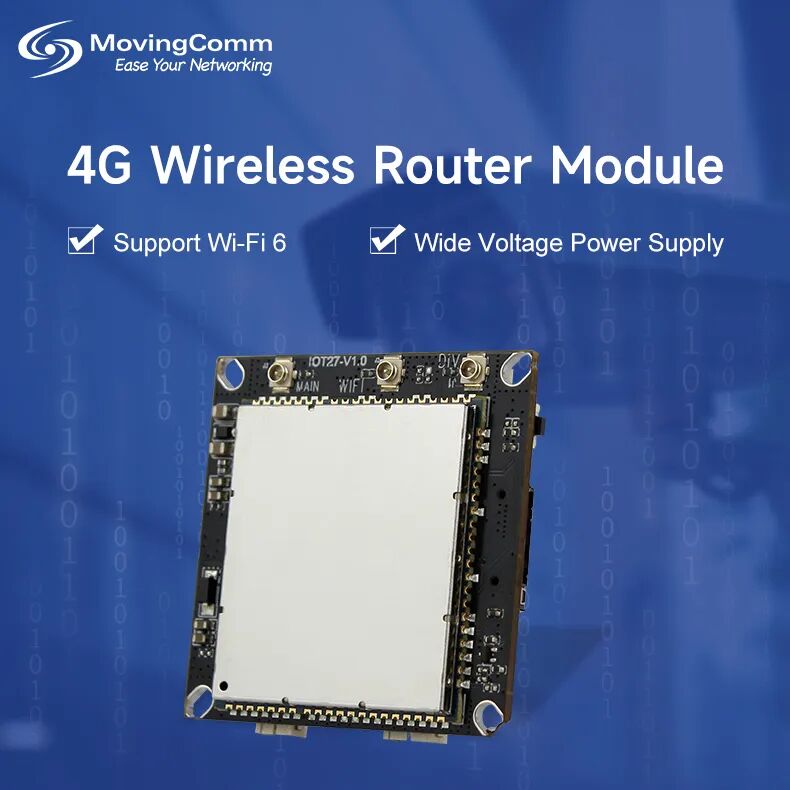

【New】ComIoT 27 4G Module Small Size, Big Power

2026-03-25

Struggling with IoT device networking? Incompatible interfaces, overly complex deployments, and difficulties in multi-regional networking? This ComIoT 27 4G wireless data transmission router module is designed for plug-and-play operation, integrating full functionality in a compact size to easily handle IoT front-end data acquisition and medium-to-high-speed data transmission needs!

Key Highlights

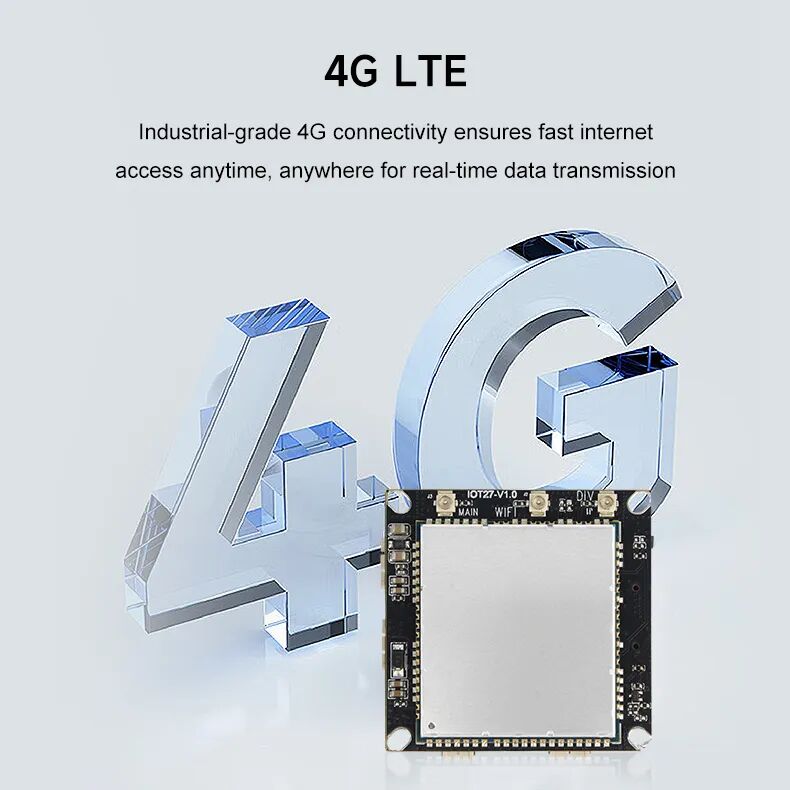

► Domestic chips with multiple standards：The ASR1803 platform supports FDD/TDD-LTE and WLAN, providing full frequency band coverage in multiple regions across China, Australia, and the United States.

► High-speed and stable transmission：FDD-LTE 150Mbps downlink / 50Mbps uplink, 2.4G Wi-Fi 286Mbps, supports up to 32 devices.

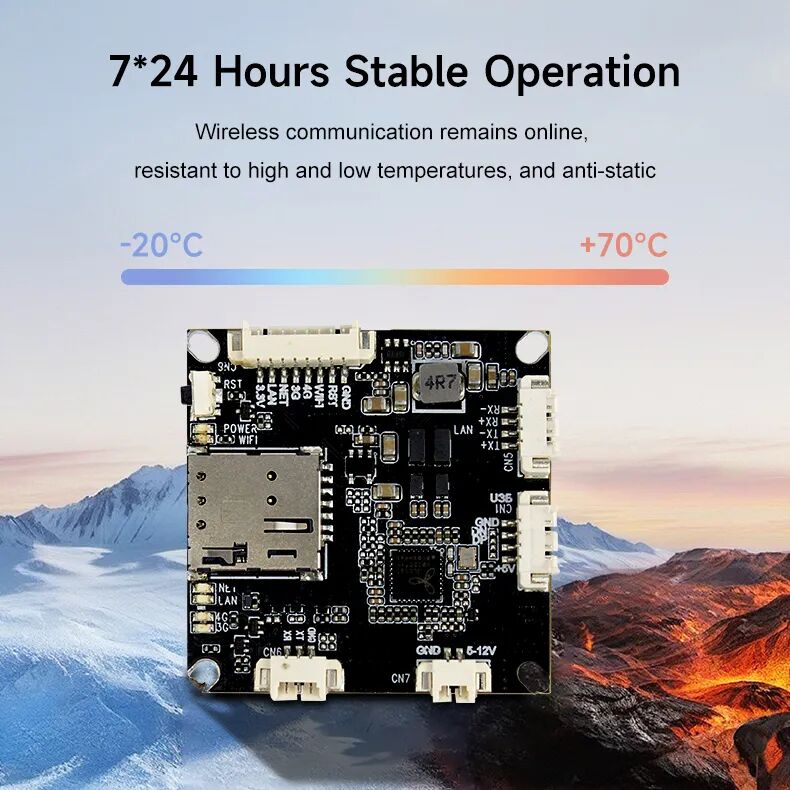

► Wide temperature and wide pressure compatibility：DC 5~12V power supply, -20℃~70℃ operating temperature, suitable for various industrial and outdoor scenarios.

► Plug and play, easy to operate：RNDIS automatic dialing, one-click configuration via web backend (192.168.1.1), passwordless login for admin.

Small size, full interface

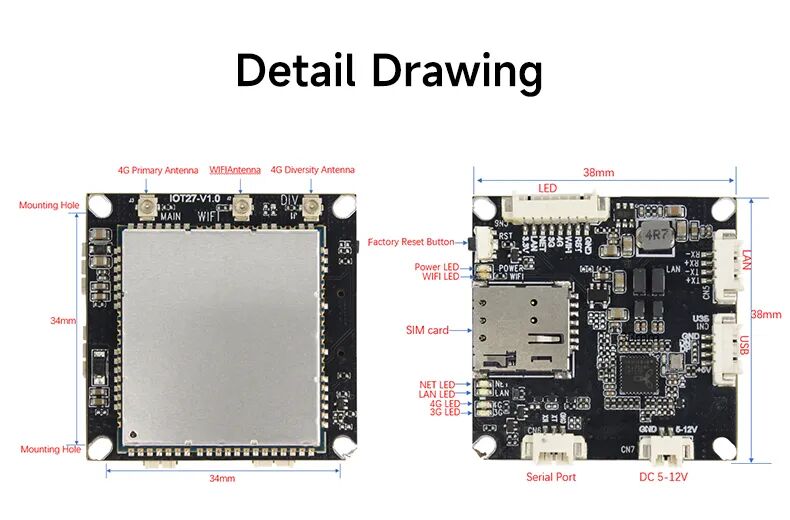

With a standard security size of 34mm*34mm, it is easy to assemble and integrates interfaces for all scenarios: RJ45 network port, UART serial port, Type C USB2.0, and comes with a Nano SIM card, multiple antennas and multi-color LED status lights, ensuring stable signal and clear status.

Multi-scenario adaptation

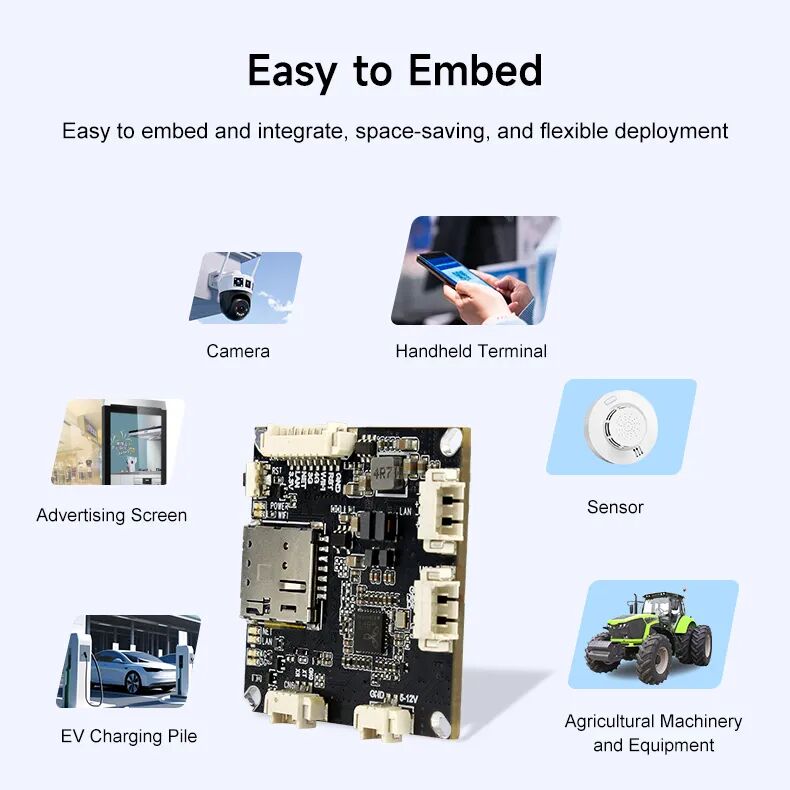

Designed specifically for wireless monitoring, and better adapted to all IoT scenarios:

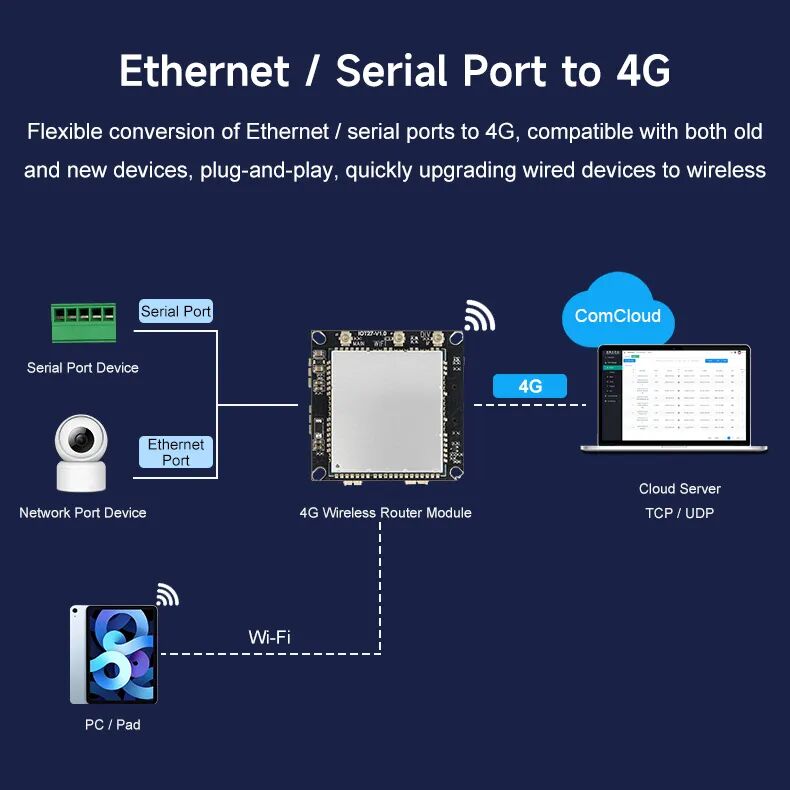

► Industrial data transmission：DTU data transmission, PLC remote control, standardized interface for direct connection to the control motherboard

► Wireless monitoring：Cameras and security equipment can be plugged in and connected to the internet, and can also be used in outdoor scenarios without broadband.

► Smart hardware：IoT front-end data collection and aggregation, low power consumption adaptable to various smart terminals

► Cross-border networking：Covering frequency bands in multiple regions of Asia, Europe, America, and Australia, enabling easy network connectivity for cross-border devices.

▼Click the drop-down menu to learn more.▼

Thoughtful design

Press and hold for 3 seconds to reset; factory/module dual reset modes; power/network/USB port 1.25mm pitch for neat wiring; compatible with Windows/Linux/Android systems, enabling barrier-free development and integration.

Small size, high reliability, low cost, and easy deployment – ComIoT 27 makes IoT connectivity simpler!

👉Please contact us if needed for more technical information!
